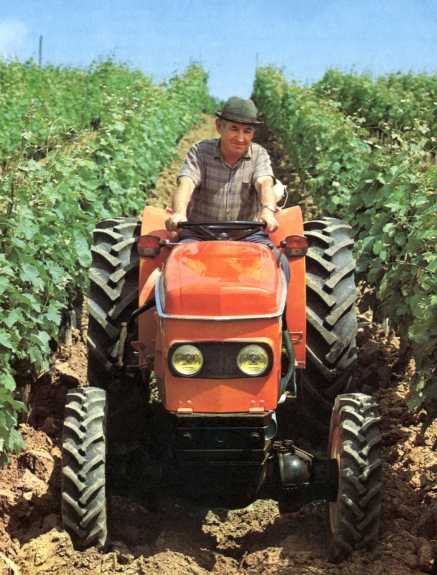

RENAULT 460 S



Technical type :7377
Start :01/05/1976
End : 27/02/1981
Nb build : 108




                       Specification
  MWM D325-3 3 Cyl diesel engine
     Air cooled
     48 HP DIN - 35 KW (2350rpm)
     Bore 95 - Stroke 120 (2554 cm3)
   Dual dry clutch ( independent PTO)
   10 speed gearbox (with ranges) + 2 Rev.
  Front axle with crownwheel and pinion
  Mechanical recirculating ball steering
  Rear axle with spur gear reduction
  Disk brakes with external expanders
  Rear power take off low 588 rpm. indep.
  TractoControl linkage 2276 to 3507 daN
  3 point linkage  Cat I
New bonnet from No 7740108 in 11/1979
N° 0143
